Technical Specifications
| Brand | DAB Pumps |
| Suitable For | Clean Water |
| Bar | 4.8 Bar |
| Approval | Approved For Drinking Water |
| Flow Range Category | a. 0 - 99 L/min |
| Flow Rate (L/min) | 80 L/min |
| Hp | 1.36 Hp |
| Kilo Watts | 1 kW |
| Head Range Category | b. 40 - 59 m |
| Max Head (m) | 48 m |
| Port Size Inlet | 1" BSPF inlet |
| Port Size Outlet | 1" BSPM outlet |
| Powered | Electric |
| Taps | 8 Taps |
| Volts | 240 V |
| Warranty (months) | 24 Months |
| Watts | 1000 W |
[/specification]
Description

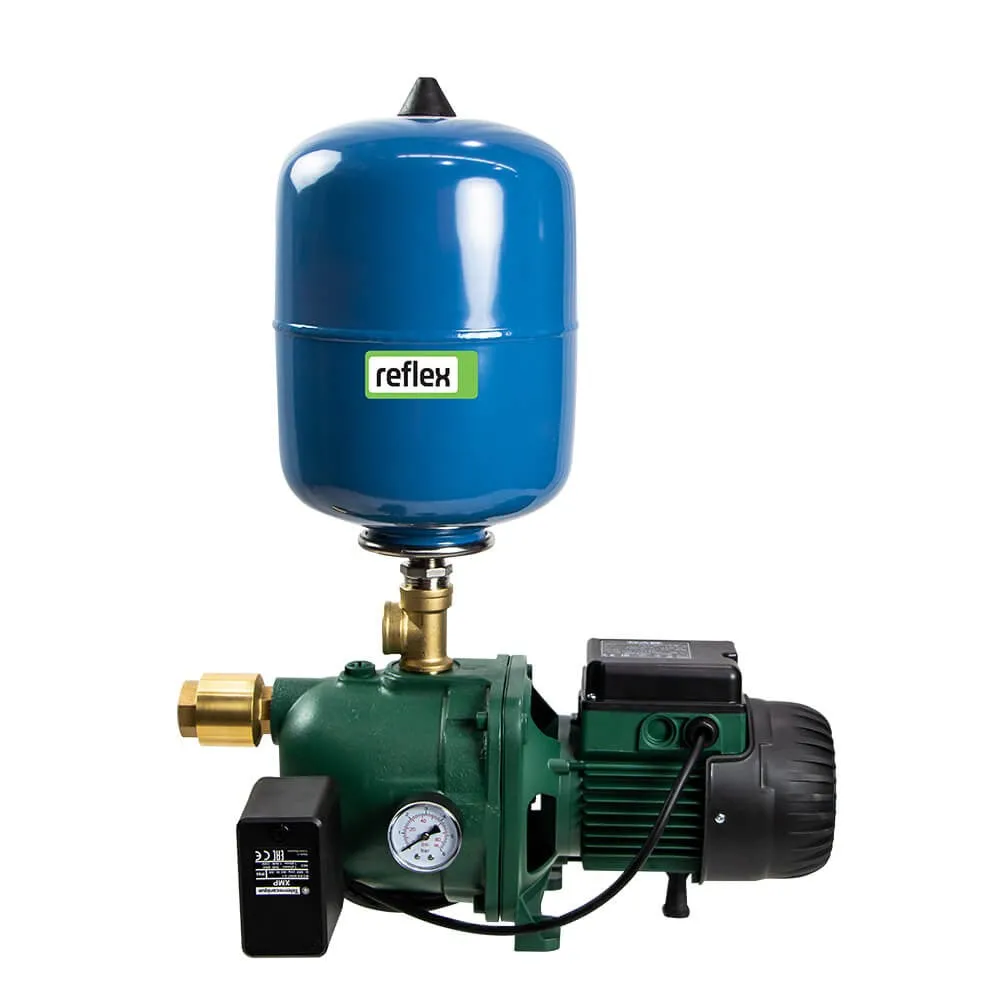

DAB-132MP-18V Surface Mounted Cast Iron Jet Pump with Pressure Switch & 18 Litre Pressure Tank
Suitable for water supply applications with suction wells, water supply and boosting of domestic systems, agricultural and gardening applications.
1.0 kW, 1.36 hp, 240V, Automatic with pressure switch, max hd 48m, max flow 80L/m, 8 taps
Ports 1” BSPF In, 1” BSPM Out
Includes 18L Reflex Pressure Tank
Reflex Tanks are highly constructed pressure tanks suitable for most domestic and commercial applications.
- -> Nominal volume: 18L
- -> Nominal Draw-off: 6L
- -> Continuous max. temp 70°C
- -> Continuous max. pressure: 10 Bar
- -> Pre-charge: 4 Bar (58PSI)
- -> Diameter: 280 mm
- -> Height: 407mm
- -> Net Weight: 3.2Kg
- -> System Connection: GI
- -> Colour: BLUE RAL 5007
Warranty
2 Year DAB Pumps Warranty
