Technical Specifications
| Brand | DAB Pumps |
| Product Type | Pressure System |
| Suitable For | Clean Water |
| Bar | 5.3 Bar |
| Approval | Approved For Drinking Water |
| Flow Range Category | a. 0 - 99 L/min |
| Flow Rate (L/min) | 60 L/min |
| Hp | 1 Hp |
| kPa | 527 kPa |
| Kilo Watts | 0.75 kW |
| Head Range Category | b. 40 - 59 m |
| Max Head (m) | 53.8 m |
| Port Size Inlet | 1" BSPF inlet |
| Port Size Outlet | 1" BSPF outlet |
| Powered | Electric |
| Taps | 6 Taps |
| Warranty (months) | 24 Months |
| Volts | 240 V |
| Watts | 750 W |
[/specification]

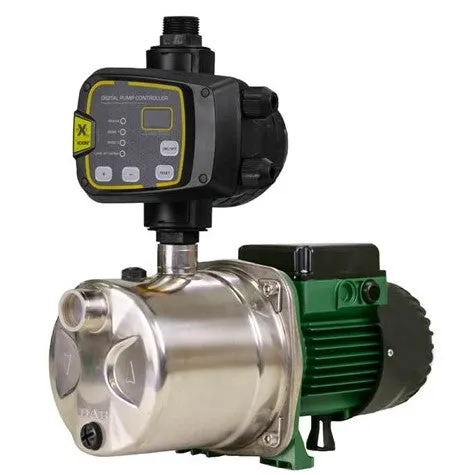

DAB-JINOX102NXTP Surface Mounted Stainless Steel Jet Pump with Automatic Controller
Description
DAB Surface Mounted - Jet Pump
Suitable for water supply applications with suction wells, water supply and boosting of domestic systems, agricultural and gardening applications.
0.75kW, 1.0hp, 240V, max hd 53.8m, max flow 60L/m, 6 taps
Ports 1" BSPF In, 1" BSPM Out
Warranty
2 Year DAB Pumps Warranty
