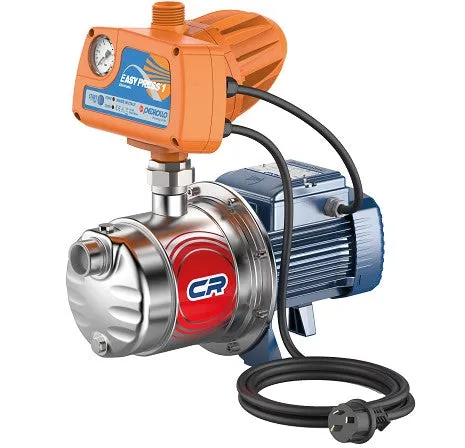

Pedrollo 5CRm 80-EP1 Horizontal Multistage Pressure Pump with EASYPRESS Electronic Controller 0.75KW 240V

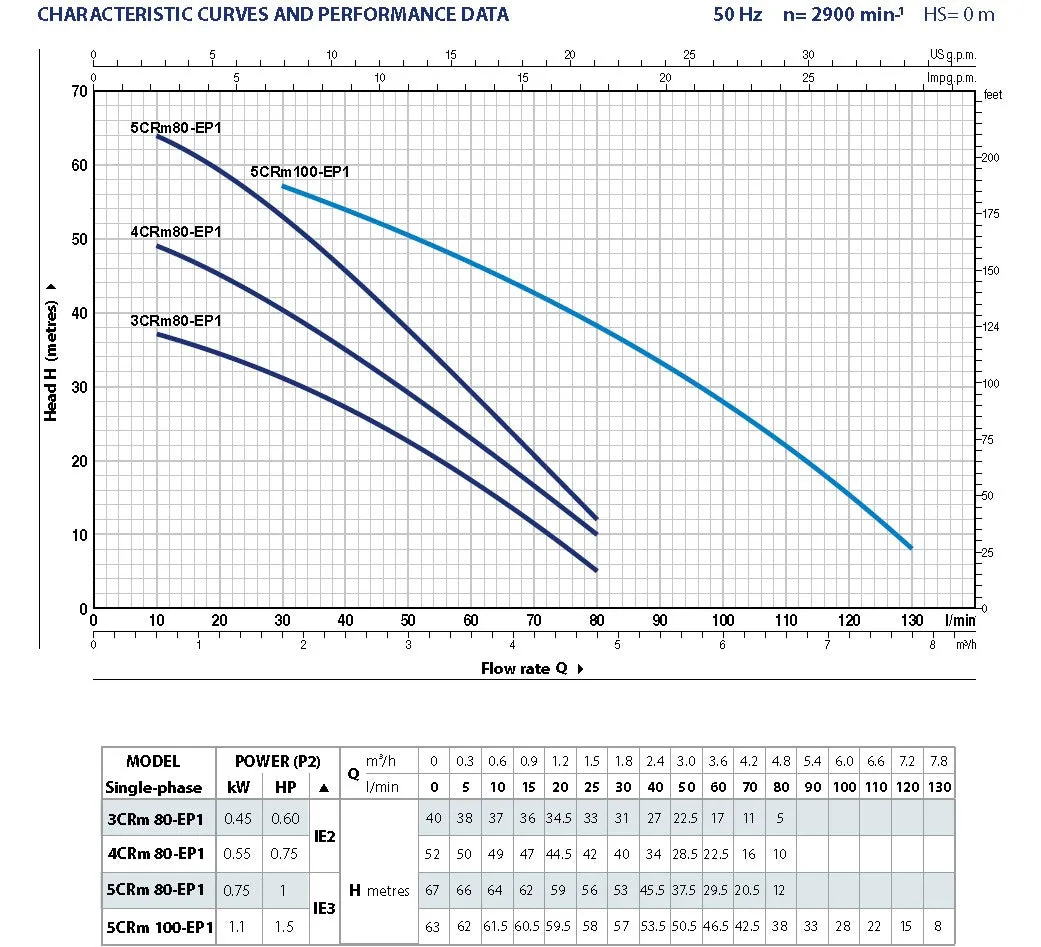

PERFORMANCE RANGE
– Flow rate up to 80L/min
– Head up to 67m
APPLICATION LIMIT
– Temperature of the liquid from -10 °C to 40 °C
– Ambient Temperature to 40 °C
– Max. working pressure 6 bar
– Continuous service S1
Surface Mounted - Horizontal Multistage Pressure Pump
0.75kW, 1hp, 240V, max hd 67m, max flow 80L/m
Ports 1” BSPF In, 1” BSPM Out
The 3-5CR Series are reliable clean water pressure pumps, suitable for use across domestic and light commercial applications. The smaller CR series pumps would typically be used for applications such as water supply to homes and irrigation of gardens. The larger CR series pumps would typically be used for applications such as water supply to large homes and small commercial buildings. These pumps are renowned for being exceptionally quiet.
The pump includes an EASYPRESS electronic controller, which automatically starts and stops the pump on demand. The controller includes a microprocessor which protects the pump from dry-running.
The pump should be installed in a well-ventilated, enclosed environment where it is protected from inclement weather.
The pump is characterised by:
- Automatic electronic pump control fitted and wired.
- Automatic electronic control provides run dry protection and constant pressure at low flows.
- Corrosion resistant pump body, diffuser and impeller.
- Mechanical shaft seal.
- Comes complete with plug and play leads.
- Flows to 80 l/m
- Heads to 67m
Applications
Domestic water supply homes, irrigation systems, caravan parks, schools and mains boosting.
