Applications
Domestic pressure system (with Presscontrol), water transfer, irrigation and garden supply

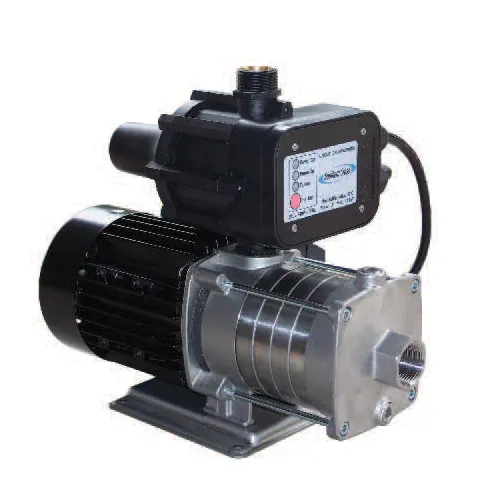

[/specification]CBI Series
Designed for automatic water pressure boosting in domestic applications, light industry, washdown, rural and stock watering.
Key Features
- - Presscontrol systems for excellent pressure and flow control without a pressure tank
- - All stainless steel pump construction
- - Brass suction check valve supplied
- - Easy installation and operation
- - Supplied with 1.8m lead and 3 pin plug
Presscontrol Features
Electronic Hydraulic Controller
- - For perfect pressure and flow control without a pressure tank
- - Presscontrol eliminates cycling and safeguards against dry running for total pump protection
- - No pump protection devices required
- - No adjustment required during installation or operation
- - Saves space— no pressure tank needed.
- - Simple installation — 25mm male connections
- - Maintenance free.
- - Saves energy through less pump starts and extends motor life
Construction Materials
- - Suction Chamber 304SS
- - Pump Housing 304SS
- - Intermediate Chamber 304SS
- - Impeller 304SS
- - Shaft 431SS
- - Shaft Seal SIC/Carbon
- - Drain & Priming Plugs 304SS
- - Base Plate 304SS
Operating Limits
- - Liquid Temp - 4°C to 40°C
- - Ambient Temperature - Maximum 40°C
- - Pumped Liquid - Clean water
Warranty: 2 years
